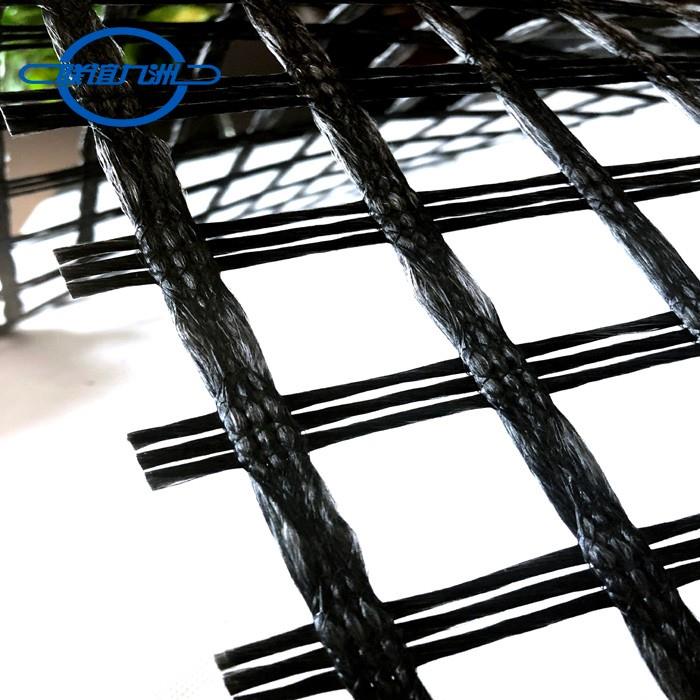

PVC Coated Polyester Geogrid

Material: Polyester yarns
Types:50/50kn,60/60kn,80/80kn,100/100kn,120/120kn,
150/150kn,180/180kn,200/200kn
Mesh Size:12.7*12.7mm,25.4*25.4mm,40*40mm,
Width: 2m,3.95m,5m,6m
Length:50m or 100m
Coating: PVC
Color: Black
Packaging: PE Bags + Colored Tapes
Certificate: ISO CE SGI TRI SGS

Send Inquiry

Chat Now

Description

Technical Parameters

Feicheng Lianyi Engineering Plastics Co., Ltd. is one of the most experienced manufacturers and suppliers of pvc coated polyester geogrid in China. Please feel free to buy high quality pvc coated polyester geogrid at competitive price from our factory. Welcome to view our website for more information.

Product Introduction

PVC Coated Polyester Geogrid are made from a woven matrix of high tenacity polyester fibres that are coated with a protective polymer coating. And strengths can be very high, with design values of up to possible 1000 kN/m. The strength of a geogrid allows positive reinforcement of embankments, steep slopes, retaining walls and other vertical soil structures. Geogrids interlock with the soil providing long term reinforcement and are the most cost-effective method of creating additional horizontal space. Polyester geogrids have excellent long term creep performance.

Benefits

1.Low weight - does not require special equipment to lay out;

2.Saves on costs - reduction of manpower necessary;

3.Allows the use of local soils and materials as fill;

4.Long life - increases life span of earthmade structure.

Specification:

Polyester Biaxial Geogrid

Property		Test Method	PET 30-30	PET 50-50	PET 80-80	PET 100-100	PET 120-120	PET 150-150	PET 200-200
Ulimate tensile strength(kn/m)	MD	EN ISO 10319	30	50	80	100	120	150	200
	CD		30	50	80	100	120	150	200
Elongation at max load (%)	MD		13
	CD		13
Mesh Size (mm)		12-50
Roll width(m)		1-6
Roll length(m)		50-200

Polyester Uniaxial Geogrid

Property		Test Method	PET 60-30	PET 80-30	PET 100-30	PET 120-30	PET 150-30	PET 180-30	PET 200-30
Ulimate tensile strength(kn/m)	MD	EN ISO 10319	60	80	100	120	150	180	200
	CD		30	30	30	30	30	30	30
Elongation at max load (%)	MD		13
	CD		13
Mesh Size (mm)		12-50
Roll width(m)		1-6
Roll length(m)		50-200
