Feicheng Lianyi Engineering Plastics Co., Ltd. is one of the most experienced manufacturers and suppliers of plastic geogrid in China. Please feel free to buy high quality plastic geogrid at competitive price from our factory. Welcome to view our website for more information.
Product Introduction
Plastic Geogrids are specifically designed to reinforce retaining walls, as well as subbases or subsoils below roads or structures, and the geogrids produced by extrusion and stretching using polypropylene (PP) have high tensile properties both mechanically and laterally. The geogrid is resistant to acid, alkali, salt and other corrosion capacity. At the same time, it is inert to the atmosphere and soil microorganisms, can resist the erosion of all fungi and is not damaged by rats, so it can adapt to any soil. The geogrid is processed with antioxidants and other materials, and its properties are not affected when the sun is very strong. Its properties can be kept stable at normal temperature, and its size change rate is very small even at higher temperature. Therefore, it can be adapted to roadbed construction in any area. Plastic geogrid is widely used in dykes, tunnels, docks, roads, railways, construction and other fields. If you are interested, please feel free to contact us.
Specification:
Property | Test Method | PP15-15 | PP20-20 | PP30-30 | PP40-40 | PP50-50 | BX1100 | BX1200 | |
Ulimate tensile strength(kn/m) | MD | ASTM | 15 | 20 | 30 | 40 | 50 | 12.4 | 19.2 |
CD | 15 | 20 | 30 | 40 | 50 | 19.0 | 28.8 | ||
Elongation at max load (%) | MD | 13 | |||||||
CD | 13 | ||||||||
Tensile strength at 2% elongation(kn/m) | MD | 6 | 7 | 11 | 14 | 18 | 4.1 | 6 | |
CD | 6 | 7 | 11 | 14 | 18 | 6.6 | 9 | ||
Tensile strength at 5% elongation(kn/m) | MD | 11 | 14 | 21 | 28 | 35 | 8.5 | 11.8 | |
CD | 11 | 14 | 21 | 28 | 35 | 13.4 | 19.6 | ||
Minimum Carbon Black( %) | 2 | ||||||||
Mesh Size (mm) | 31*31 33*33 36*36 39*39 | ||||||||
Junction Efficiency( %) | 95 | ||||||||
Roll width(m) | 2/3/3.95/5/5.9 | ||||||||
Roll length(m) | 50/75/100 | ||||||||
Product Features
1. High Tensile Strength
2. High Junction Strength
3. High Mechanical Interlock
4. High Tensile Modulus
5. High Resistance
Product Application
1.Ground Stabilization
2.Embankment Reinforcement
3.Heavy Duty Pavement Reinforcement
4.Engineering Backfill Reinforcement
 |  |

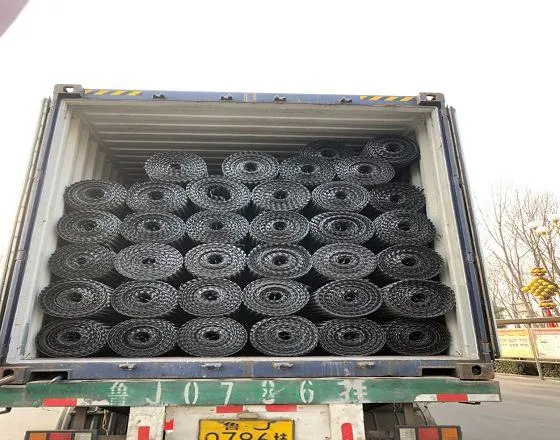

Production Line
 |  |
 |  |
