Feicheng Lianyi Engineering Plastics Co., Ltd. is one of the most experienced manufacturers and suppliers of pet geogrid in China. Please feel free to buy high quality pet geogrid at competitive price from our factory. Welcome to view our website for more information.
Product Introduction

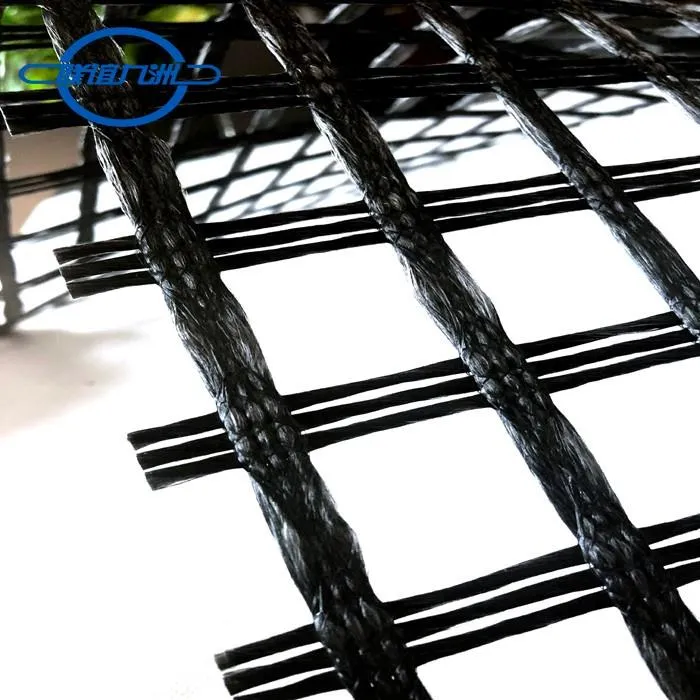

PET geogrid is a high performance soil reinforcement product, mainly used for slope stability and retaining wall facilities. It is made of polyester yarn with high molecular weight and special tensile strength. The black saturated coating on the pet geogrid greatly improves the chemical and mechanical properties and makes it durable in any conditions. These yarns are then woven into a mesh of holes of stable size to form a geometric grid shape that provides tensile reinforcement for the soil in both vertical and horizontal directions. It has the characteristics of light material, wear resistance, chemical stability, light and oxygen aging resistance, acid and alkali resistance, and is suitable for different soil and desert soil conditions. PET geogrid can be used as cushion to treat soft foundation and increase bearing capacity of foundation. It can also be laid on slope to form slope protection structure. If you are interested, please check the details carefully and feel free to contact us.
Specification
Polyester Biaxial Geogrid
Property | Test Method | PET | PET | PET | PET | PET | PET | PET | |
Ulimate tensile strength(kn/m) | MD | EN ISO 10319 | 30 | 50 | 80 | 100 | 120 | 150 | 200 |
CD | 30 | 50 | 80 | 100 | 120 | 150 | 200 | ||
Elongation at max load (%) | MD | 13 | |||||||
CD | 13 | ||||||||
Mesh Size (mm) | 12-50 | ||||||||
Roll width(m) | 1-6 | ||||||||
Roll length(m) | 50-200 | ||||||||
Polyester Uniaxial Geogrid
Property | Test Method | PET | PET | PET | PET | PET | PET | PET | |
Ulimate tensile strength(kn/m) | MD | EN ISO 10319 | 60 | 80 | 100 | 120 | 150 | 180 | 200 |
CD | 30 | 30 | 30 | 30 | 30 | 30 | 30 | ||
Elongation at max load (%) | MD | 13 | |||||||
CD | 13 | ||||||||
Mesh Size (mm) | 12-50 | ||||||||
Roll width(m) | 1-6 | ||||||||
Roll length(m) | 50-200 | ||||||||
Product Application
Slope Protection, Base reinforcement, Subgrade reinforcement, Embankment stabilization
 |  |
Production Line
 |  |
Packing & Shipping:
 |  |
