Feicheng Lianyi Engineering Plastics Co., Ltd. is one of the most experienced manufacturers and suppliers of fiberglass geotextile with geogrid in China. Please feel free to buy high quality fiberglass geotextile with geogrid at competitive price from our factory. Welcome to view our website for more information.
Product Introduction
This Fiberglass Geotextile with Geogrid is specifically made as intermediate layers for asphalt reinforcement. Our products aim to improve road life and performance while helping to reduce maintenance costs. It can make full use of the strength of yarn and fabric to improve its chemical resistance, high pressure resistance, tear resistance and creep resistance. The product is durable, free from biological influences of soil microorganisms, inert to all common chemicals in the soil, and formulated to resist uv degradation. Although they have different properties and different advantages, they all have unique coatings that provide excellent heat resistance and stability at a melting point of 900°F, resulting in a rigid asphalt layer. This Fiberglass Geotextile with Geogrid is widely used in pavement reinforcement, preventing the occurrence of pavement cracks, ruts and other diseases, and solving the problem that asphalt pavement is difficult to strengthen.
Specification:
Fiberglass Geogrid | |||||||||
Property | Test Method | FG | FG | FG | FG | FG | FG | FG | |
Ulimate tensile strength(kn/m) | MD | EN ISO 10319 | 30 | 50 | 80 | 100 | 120 | 150 | 200 |
CD | 30 | 50 | 80 | 100 | 120 | 150 | 200 | ||
Elongation at max load (%) | MD | 3 | |||||||
CD | 3 | ||||||||
Non Woven Geotextile | |||||||||
Raw Material | PET or PP | ||||||||
Gram Weight | 120g,150g or 200g | ||||||||
| Roll Size | |||||||||
Roll width(m) | 1-6 | ||||||||
Roll length(m) | 50-200 | ||||||||
Product Application
 |  |

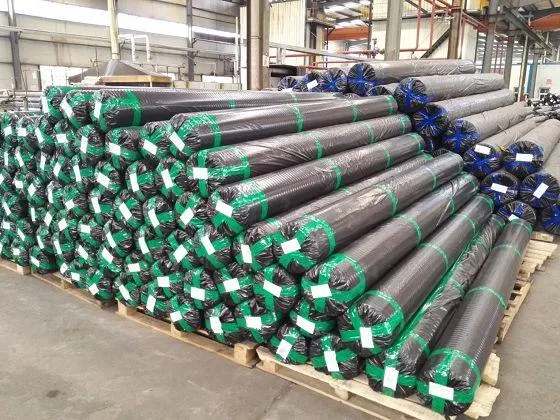

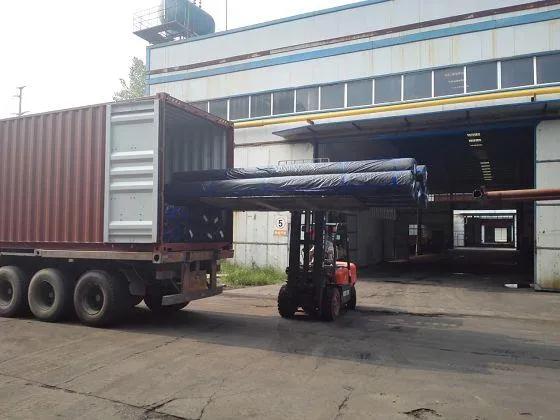

Packing & Shipping:
 |  |
