Feicheng Lianyi Engineering Plastics Co., Ltd. is one of the most experienced manufacturers and suppliers of fiberglass composite geotextile in China. Please feel free to buy high quality fiberglass composite geotextile at competitive price from our factory. Welcome to view our website for more information.
Product Introduction

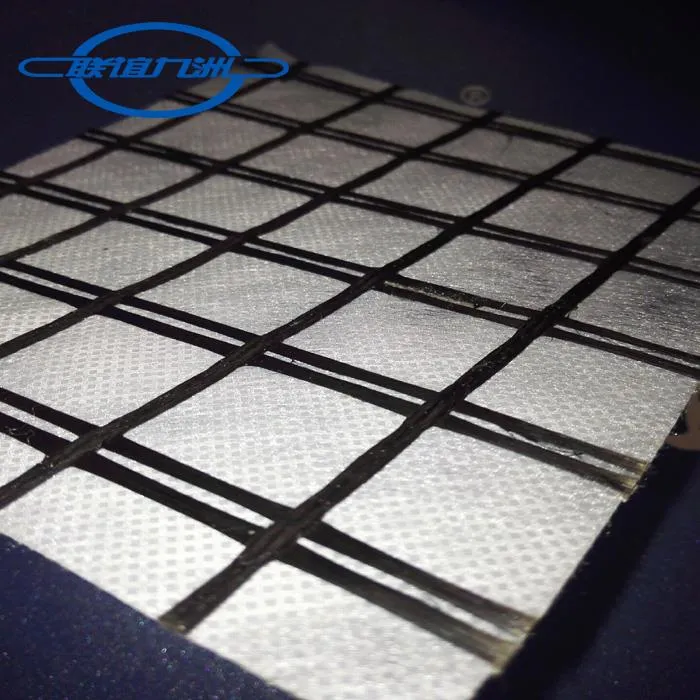

Fibreglass Composite Geotextile is a new material composed of short fiber needle punched non-woven fabric. It is formulated to provide a more cohesive asphalt layer instead of the traditional viscous coating. The geotextile not only has the characteristics of high tensile strength and low elongation, but also has the properties of needling nonwovens. Therefore, it can be used for enhancement, isolation and protection and it has the function of collecting soil and abandoning water well in 3d overall direction and level. Fiberglass composite geotextile can help drainage and reverse filtration. It can let water pass through and prevent the loss of sand particles. Moreover, it also can be used for reinforcement and stabilization, which can transfer or distribute the local stress on the soil to a larger area, and stabilize and limit the deformation and settlement of geotechnical engineering in the process of long-term use. If you are interested, please feel free to contact us.
Specification:
Fiberglass Geogrid | |||||||||
Property | Test Method | FG | FG | FG | FG | FG | FG | FG | |
Ulimate tensile strength(kn/m) | MD | EN ISO 10319 | 30 | 50 | 80 | 100 | 120 | 150 | 200 |
CD | 30 | 50 | 80 | 100 | 120 | 150 | 200 | ||
Elongation at max load (%) | MD | 3 | |||||||
CD | 3 | ||||||||
Non Woven Geotextile | |||||||||
Raw Material | PET or PP | ||||||||
Gram Weight | 25g,30g or 40g | ||||||||
| Roll Size | |||||||||
Roll width(m) | 1-6 | ||||||||
Roll length(m) | 50-200 | ||||||||
Product Application

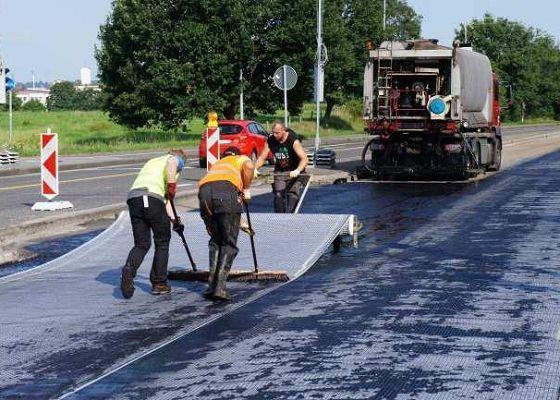

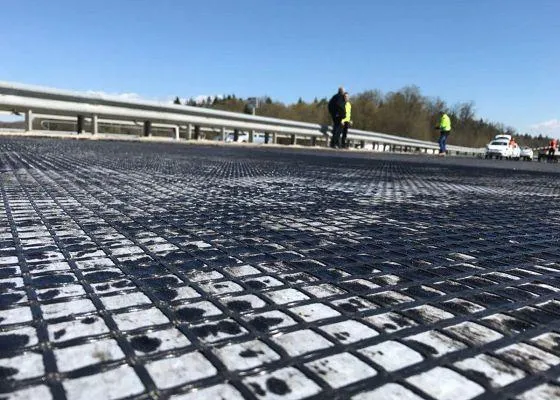

●Airport runways, taxiways, roads, bridges, parking lots, jointed concrete highways to control reflective cracking.
●High traffic pavement to control of rutting.
●New highway construction, and other road maintenance/repair jobs to improve pavement life.
 |  |

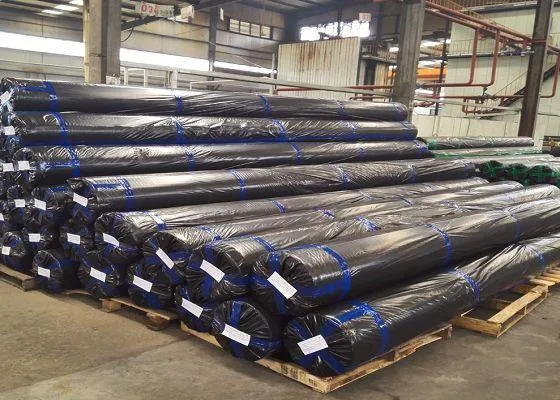

Packing & Shipping:
 |  |
