Feicheng Lianyi Engineering Plastics Co., Ltd. is one of the most experienced manufacturers and suppliers of plastic geocell in China. Please feel free to buy high quality plastic geocell at competitive price from our factory. Welcome to view our website for more information.
Product Introduction

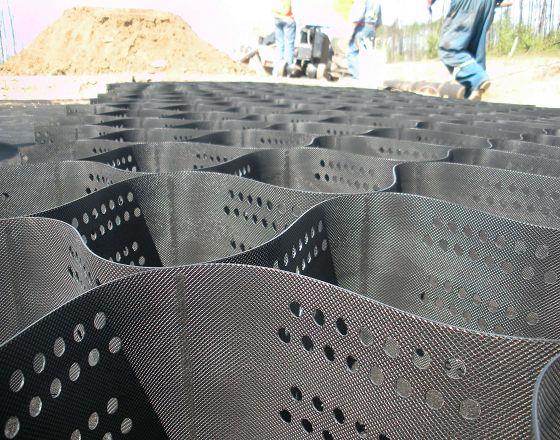

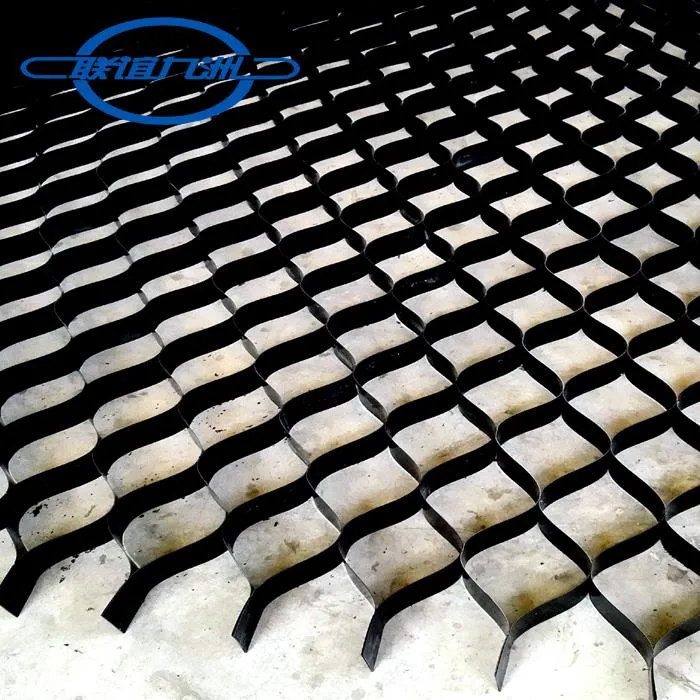

Developed in the late 1970s and early 1980s, Plastic Geocells are three-dimensional expandable panels made of high-density polyethylene (HDPE), polyester, or other polymer materials. It has the characteristics of telescopic, transport and so on. During construction, it can be stretched into a network, filled with soil, gravel, concrete and other loose materials, to form a structure with strong lateral constraints and stiffness. When expanded during installation, the interconnected strips form a flexible three-dimensional honeycomb wall in which the specified fill material is placed and compacted. This creates a free drainage system that holds the fill material in place and provides restraint by stretching the reinforcement to prevent mass movement. The Plastic Geocell is mainly used to stabilize road and railway subgrade, to withstand the load embankment and shallow river treatment and so on. If you are interested, please feel free to contact us.
Advantages
1.Perforated Cellular Confinement System
2.Cost Effective Soil Stabilisation
3.Available In A Number of Depth & Cell Opening Combination
Specification:
HDPE Geocell | |||
Index Properties | Test Method | Units | Values |
Polymer | - | - | HDPE |
Carbon Black content | ASTM D 1603 | % | 2.0 |
Density | ASTM D 1505 | g/cm3 | ≥0.95 |
Sheet Thickness before texturing | ASTM D 5199 | mm | 1.0-1.7 |
Seam Peel Strength | COE GL-86-19 | N | 1420 |
Low Temperature Brittleness | ASTM D 746 | ℃ | < -77 |
Environment Stress Crack Resistance | ASTM D 1693 | hours | > 4000 |
Welding Distance | - | mm | 330-1000 |
Cell Depth | - | mm | 50-200 |
Product Application

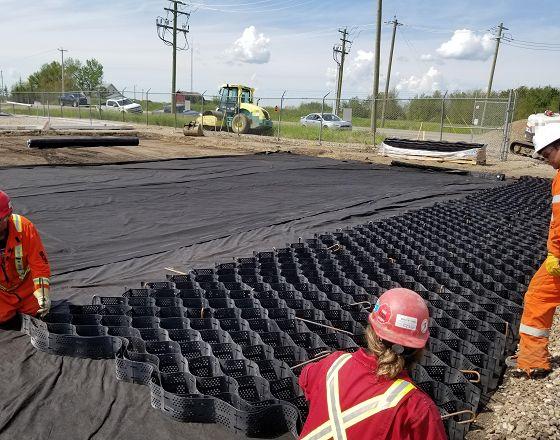

Retaining walls, Grass driveways, boat ramps and slope erosion control
 |  |

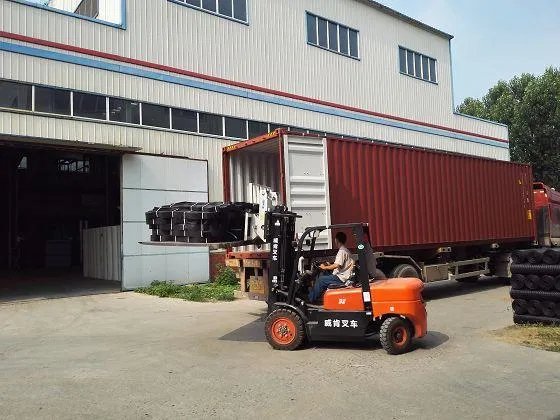

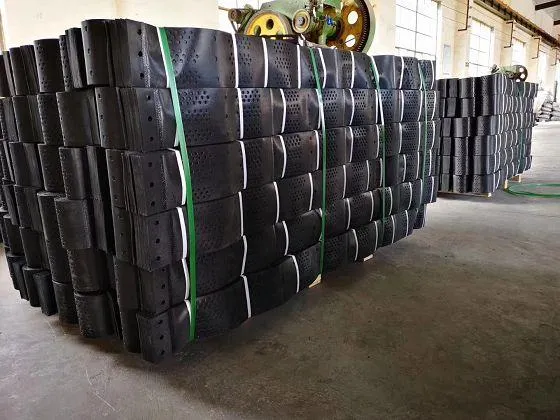

Packing& Shipping:
 |  |
