Feicheng Lianyi Engineering Plastics Co., Ltd. is one of the most experienced manufacturers and suppliers of erosion control geocell in China. Please feel free to buy high quality erosion control geocell at competitive price from our factory. Welcome to view our website for more information.

Product Introduction

Erosion Control Geocell is a cellulose inhibition system welded by high thickness polyethylene (HDPE), which forms a cellular grid when extended and is loaded with soil or aggregate. Compared with other products, the geocell environmental protection material has the advantages of light weight, low cost, high durability, improving the reliability of the structure and prolonging the life of the structure. It can increase flow capacity, reduce erosion of furrow, prevent accumulation of water pressure and eliminate centralized erosion. The honeycomb limit structure can fix the filling material and limit the water pressure acting on it, thus improving the flow capacity. Moreover, it also increases the strength and stiffness of the pavement. This makes Erosion Control Geocell the ideal solution for all types of soil stabilization and foundation reinforcement, it is widely used in railway, port and airport construction. If you are interested, please feel free to contact us.

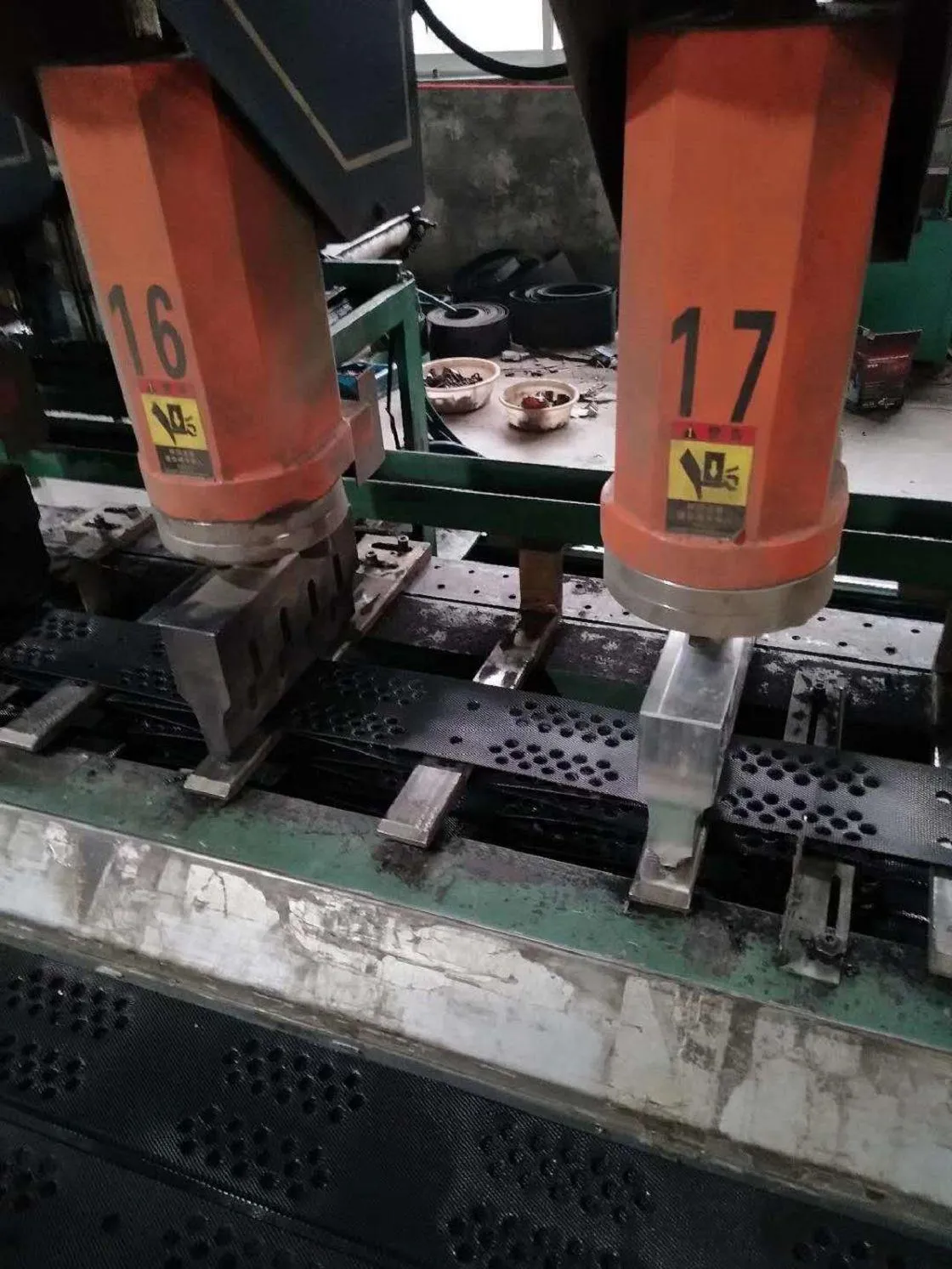

image002(001)

Specification:

HDPE Geocell
Index Properties	Test Method	Units	Values
Polymer	-	-	HDPE
Carbon Black content	ASTM D 1603	%	2.0
Density	ASTM D 1505	g/cm³	≥0.95
Sheet Thickness before texturing	ASTM D 5199	mm	1.0-1.7
Seam Peel Strength	COE GL-86-19	N	1420
Low Temperature Brittleness	ASTM D 746	℃	< -77
Environment Stress Crack Resistance	ASTM D 1693	hours	> 4000
Welding Distance	-	mm	330-1000
Cell Depth	-	mm	50-200
