Feicheng Lianyi Engineering Plastics Co., Ltd. is one of the most experienced manufacturers and suppliers of hdpe geocell in China. Please feel free to buy high quality hdpe geocell at competitive price from our factory. Welcome to view our website for more information.
Product Introduction

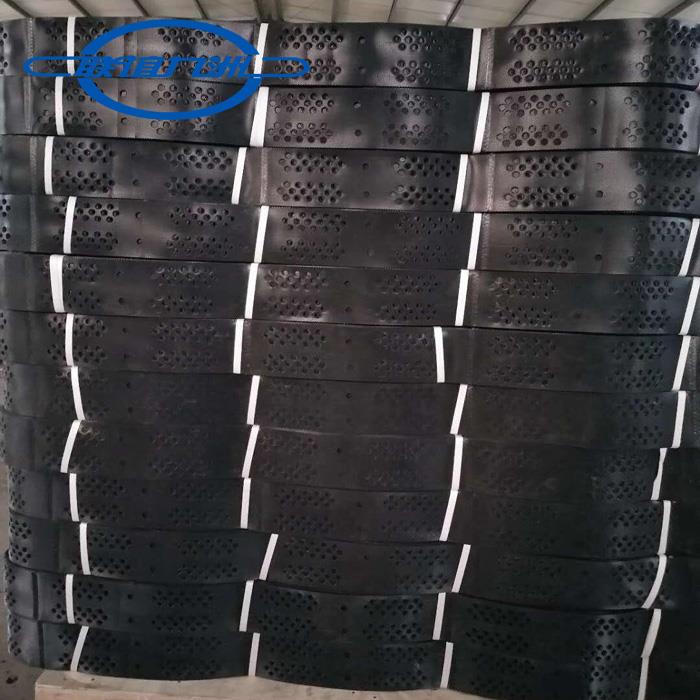

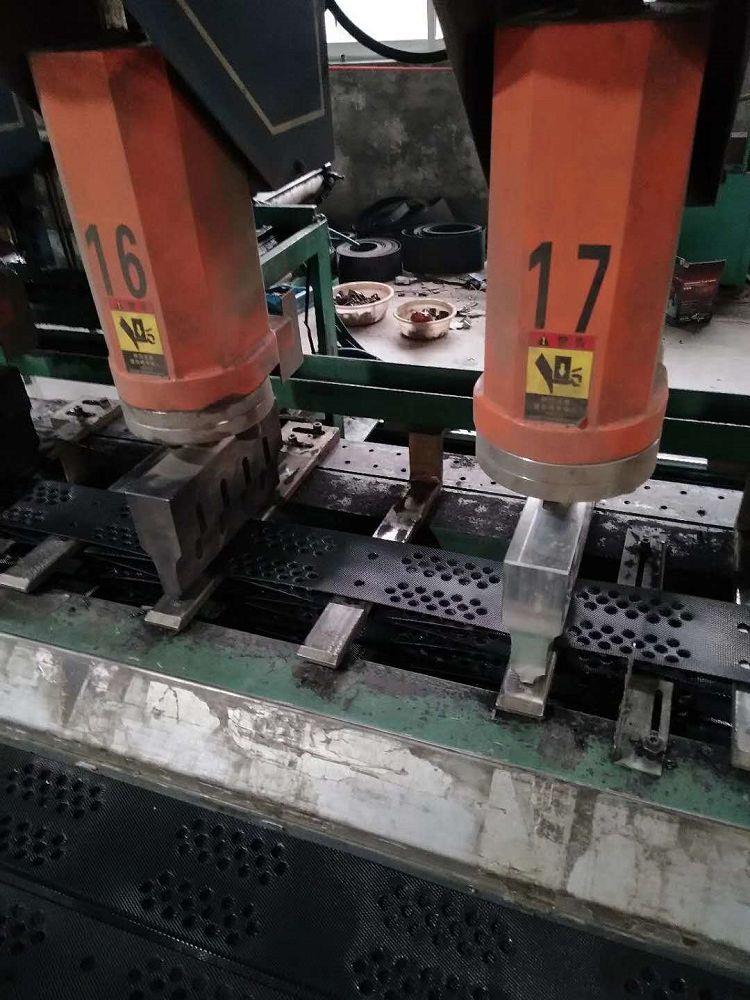

The high density polyethylene geocell are reinforced by high strength HDPE wideband, which are welded into a mesh grid structure. HDPE Geocell has the function of flexible expansion and contraction. When transported, it can be retracted and folded. During construction, it can be pulled out of honeycomb shape and filled with loose materials such as sand, gravel and cement concrete to form a structure with strong side and high strength. This network structure has strong and rigid constraints in both horizontal and vertical. Moreover, it has a higher side limit with anti-skid and anti deformation ability, which can effectively enhance the bearing capacity of subgrade and disperse load. The selection of HDPE Geocell can greatly alleviate the construction labor, reduce the thickness of subgrade engineering, and the construction speed is faster, and the project budget is greatly reduced. If you are interested, please feel free to contact us.
Specification:
HDPE Geocell | |||
Index Properties | Test Method | Units | Values |
Polymer | - | - | HDPE |
Carbon Black content | ASTM D 1603 | % | 2.0 |
Density | ASTM D 1505 | g/cm3 | ≥0.95 |
Sheet Thickness before texturing | ASTM D 5199 | mm | 1.0-1.7 |
Seam Peel Strength | COE GL-86-19 | N | 1420 |
Low Temperature Brittleness | ASTM D 746 | ℃ | < -77 |
Environment Stress Crack Resistance | ASTM D 1693 | hours | > 4000 |
Welding Distance | - | mm | 330-1000 |
Cell Depth | - | mm | 50-200 |
Product Application
1.EARTH RETENTION

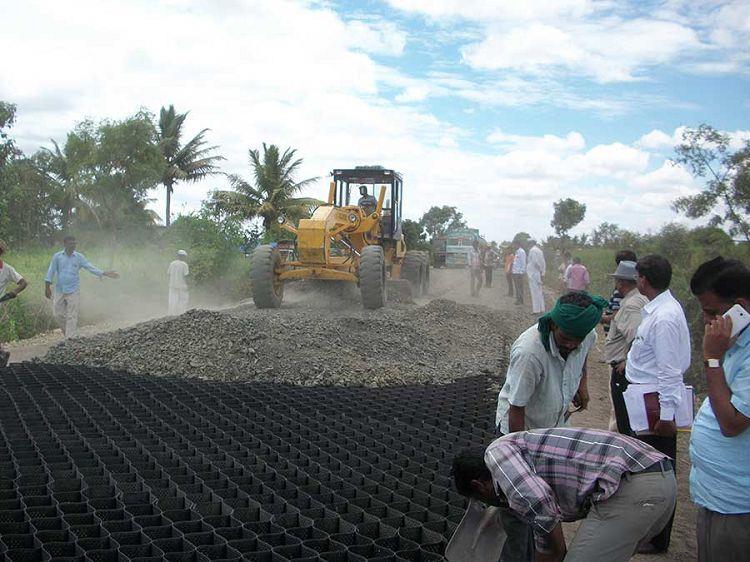

2.LOAD SUPPORT
3.SLOPE PROTECTION
4.CHANNEL PROTECTION

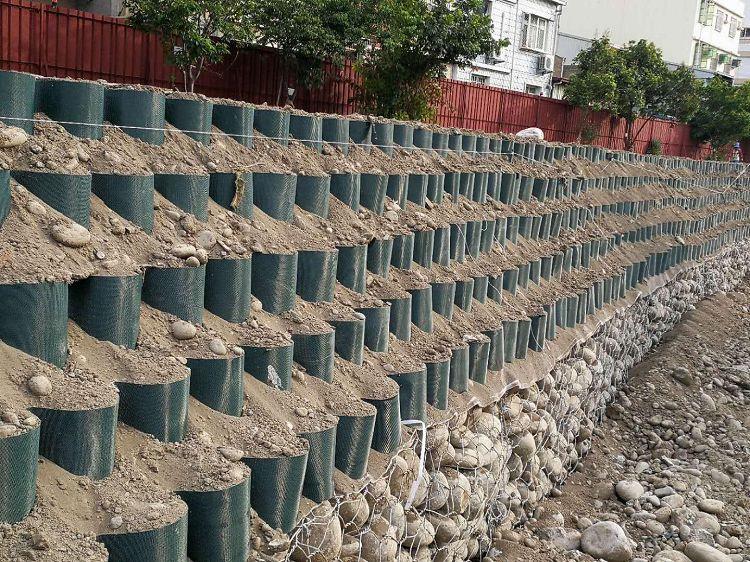

5.RETAINING WALL
Our Service:
Free Samples,Excellent Quality, Factory Price, Prompt Delivery And OEM Services.

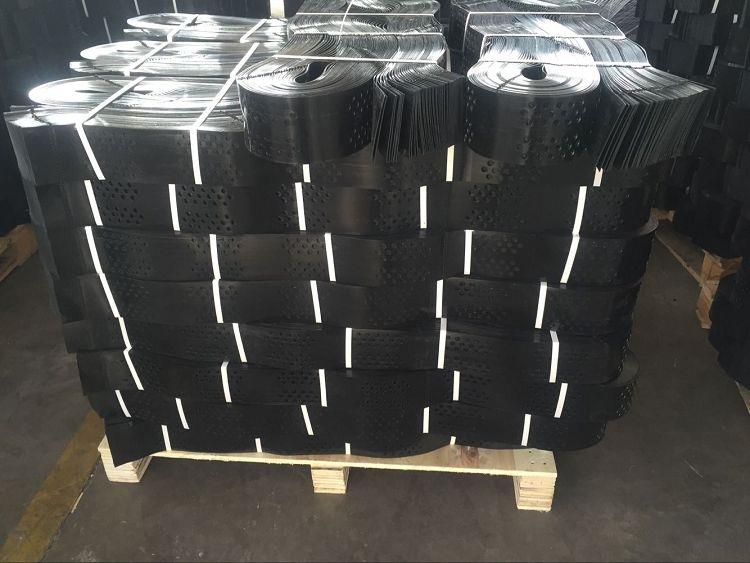

Packing& Shipping:
