Feicheng Lianyi Engineering Plastics Co., Ltd. is one of the most experienced manufacturers and suppliers of extruded biaxial geogrid in China. Please feel free to buy high quality extruded biaxial geogrid at competitive price from our factory. Welcome to view our website for more information.
Product Introduction

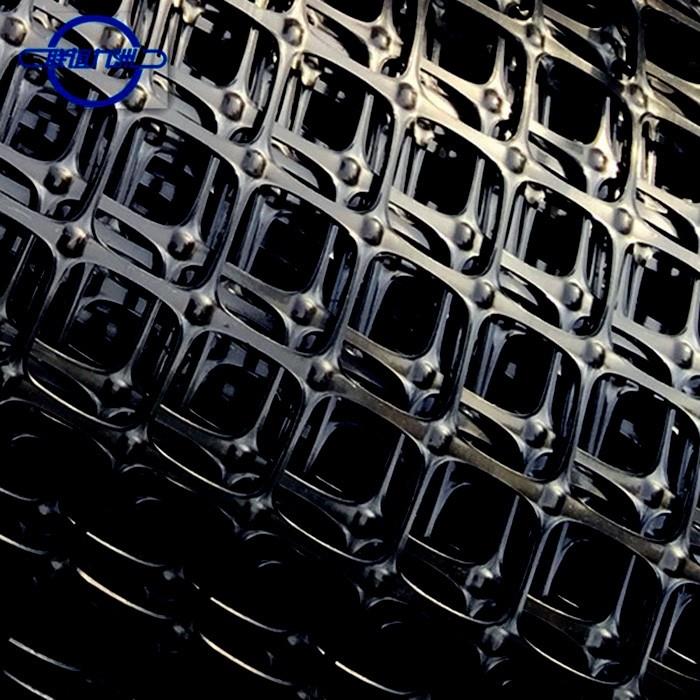

Extruded Biaxial Geogrid is manufactured from high molecular PP, extruding, longitudinal stretching and transverse stretching. It makes soil reinforced with its excellent structure stability and strong mechanical interlock performance.
Product Features
1.Creating a stiffer aggregate layer
2.Reducing the vertical stress
3.Improving the load distribution generated by the overlying structure
Specification:
Property | Test Method | PP15-15 | PP20-20 | PP30-30 | PP40-40 | PP50-50 | BX1100 | BX1200 | |
Ulimate tensile strength(kn/m) | MD | ASTM | 15 | 20 | 30 | 40 | 50 | 12.4 | 19.2 |
CD | 15 | 20 | 30 | 40 | 50 | 19.0 | 28.8 | ||
Elongation at max load (%) | MD | 13 | |||||||
CD | 13 | ||||||||
Tensile strength at 2% elongation(kn/m) | MD | 6 | 7 | 11 | 14 | 18 | 4.1 | 6 | |
CD | 6 | 7 | 11 | 14 | 18 | 6.6 | 9 | ||
Tensile strength at 5% elongation(kn/m) | MD | 11 | 14 | 21 | 28 | 35 | 8.5 | 11.8 | |
CD | 11 | 14 | 21 | 28 | 35 | 13.4 | 19.6 | ||
Minimum Carbon Black( %) | 2 | ||||||||
Mesh Size (mm) | 31*31 33*33 36*36 39*39 | ||||||||
Junction Efficiency( %) | 95 | ||||||||
Roll width(m) | 2/3/3.95/5/5.9 | ||||||||
Roll length(m) | 50/75/100 | ||||||||
Advantages
1. Fast and an all-weather installation solution;
2. Construction of cost effective;
3. Solutions for slope protection;
4. Ability to reinforce any soil type;
5. Low creep under constant load;
6. High modulus;
7. Easy to install;
8. High pull out resistance;
9. Excellent survivability to construction stresses.
Product Application
1.Base reinforcement
2.Road construction
3.Small retaining walls
4.Wrapped face retaining walls
 |  |
Production Line
 |  |
Packing & Shipping:
 |  |
Our Service
1.On a regular basis or as per your request,we entrust national testing agencies to conduct quality inspections;
2.Strictly in accordance with the ISO9001international quality system standard,we monitor and manage the whole process throughout production,quality testing,and measurement to ensure product quality;
3.We have more than 70 production line,so we have best price and fast delivery time.
