Feicheng Lianyi Engineering Plastics Co., Ltd. is one of the most experienced manufacturers and suppliers of asphalt coated fiberglass geogrid in China. Please feel free to buy high quality asphalt coated fiberglass geogrid at competitive price from our factory. Welcome to view our website for more information.

Product Introduction

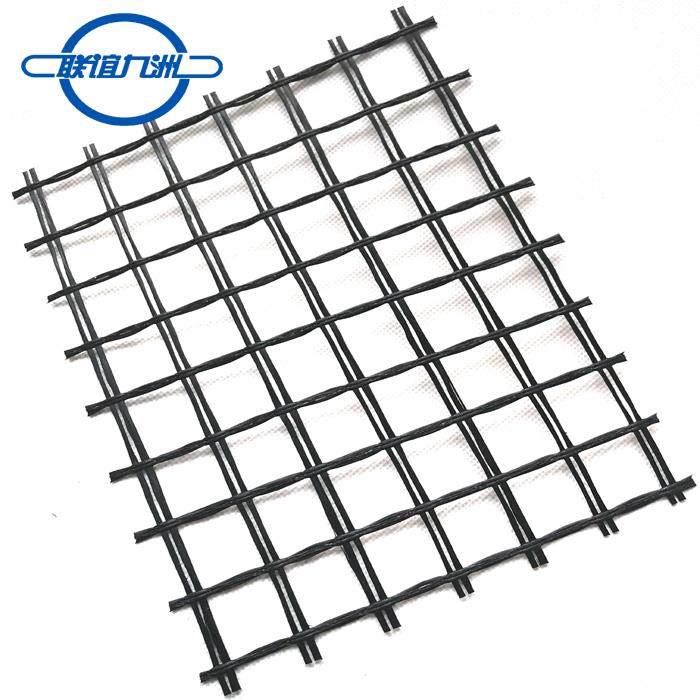

Asphalt Coated Fiberglass geogrid is a reticular structural material made of glass fiber with bitumen coating. It withstands high and low temperatures and can resist corrosion. It is a stress transferring asphalt reinforcement geogrid developed specifically for asphalt overlays. And it can not only decrease the cost of construction but also prolong the service life of the pavement.

Using it in a pavement system can disperse cyclic loading of vehicle and lower reflective cracking occurrence due to temperature difference to extend useful life of pavement.

Benefits

1.Specially road reinforcement material .

2.Extend road life of road and prevent road cracks.

3.High tensile strength, low elongation,corrosion resistant,acid and alkali resistant,chemical stability.

4.It's flexible,light,easy to installation.

5.Save labour,time...etc cost,reduce late maintenance cost.

Specification:

Property		Test Method	GG3030	GG5050	GG8080	GG100100	GG120120	GG150150	GG200200
Ulimate tensile strength(kn/m)	MD	EN ISO 10319	30	50	80	100	120	150	200
	CD		30	50	80	100	120	150	200
Elongation at max load (%)	MD		3
	CD		3
Mesh Size (mm)		12-50
Roll width(m)		1-6
Roll length(m)		50-200
